3M 5413 tape is widely used in PCB fabrication and electronics manufacturing because it combines high-temperature resistance, electrical insulation, clean removal, and chemical resistance in a single material. It is a polyimide film tape with a silicone adhesive, making it suitable for demanding electronic assembly processes.
Here are the main reasons it is considered an excellent choice:
1. Withstands High Temperatures
PCB manufacturing often involves processes such as:
- Wave soldering
- Reflow soldering
- Hot-air leveling
3M 5413 tape is designed to tolerate these elevated temperatures without melting, shrinking, or leaving excessive adhesive residue.
2. Excellent Electrical Insulation
The polyimide backing provides strong dielectric properties, helping protect sensitive electronic components from short circuits and unintended electrical contact during manufacturing and testing.
3. Chemical Resistance
Electronics production exposes materials to:
- Fluxes
- Solvents
- Cleaning agents
- Etching chemicals
3M 5413 resists many of these chemicals, allowing it to maintain its performance throughout manufacturing.

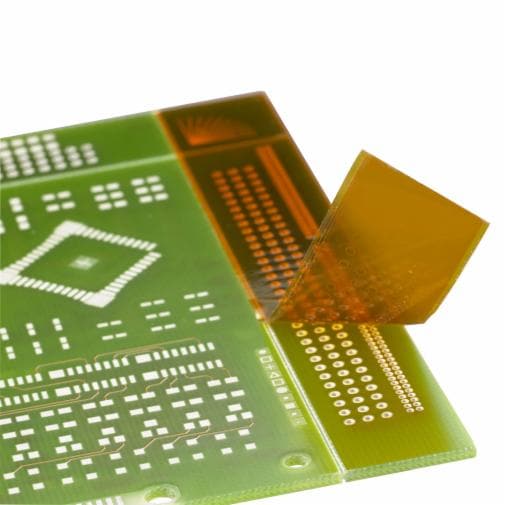

4. Clean Removal
After masking or temporary protection, the tape can generally be removed with minimal adhesive residue, reducing cleanup time and lowering the risk of contaminating delicate PCB surfaces.
5. Precise PCB Masking
The tape is commonly used to mask:
- Gold fingers
- Connectors
- Test points
- Edge contacts
- Areas that should remain free of solder or coating
Its thin profile helps maintain dimensional accuracy during precision manufacturing.
6. Compatible with Powder Coating and Surface Finishing
Although best known for electronics, the tape also performs well in high-temperature masking applications such as powder coating, making it versatile for manufacturers handling multiple production processes.
7. Dimensional Stability
Polyimide film remains stable under heat, helping the tape retain its shape and position without significant stretching or distortion during thermal cycling.
8. Suitable for Automated Manufacturing
The tape’s consistent thickness and reliable adhesive properties make it compatible with automated dispensing and high-volume production environments.
Common Electronics Applications
- PCB wave solder masking
- Reflow solder masking
- Protection of connectors and edge contacts
- Coil and transformer insulation
- Flexible circuit board manufacturing
- Semiconductor processing
- Temporary masking during conformal coating
- Battery pack assembly
- Aerospace and medical electronics
Key Benefits at a Glance
| Feature | Benefit |
|---|---|
| High-temperature resistance | Survives soldering processes |
| Polyimide backing | Excellent thermal stability |
| Silicone adhesive | Clean removal and heat resistance |
| Electrical insulation | Protects sensitive circuits |
| Chemical resistance | Withstands manufacturing chemicals |
| Thin construction | Enables precision masking |
| Low residue | Reduces post-process cleaning |
Overall, 3M 5413 tape is valued because it delivers a combination of thermal durability, electrical insulation, chemical resistance, and clean removability, making it a dependable masking and protection solution for PCB assembly, soldering, and other precision electronics manufacturing processes.
